  3/4" Bearing UCF204-12 + Square Flanged Cast Housing Mounted Bearings
3/4" Bearing UCF204-12 + Square Flanged Cast Housing Mounted Bearings



Our Price: $7.88
. Item: UCF204-12 Ball Bearing
. Type: Flange Mounted Bearing
. Bolt Size: 3/8" inch
. Shaft Diameter: 3/4" inch
. Basic Load (Cr): 12.8 KN

Stock Status:In Stock
Product Code: KIT7357
Qty:

Description

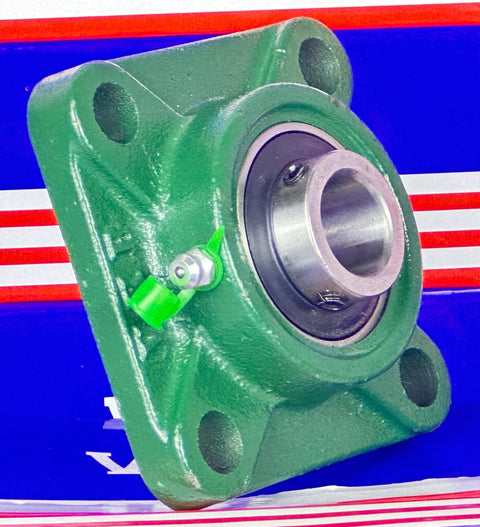

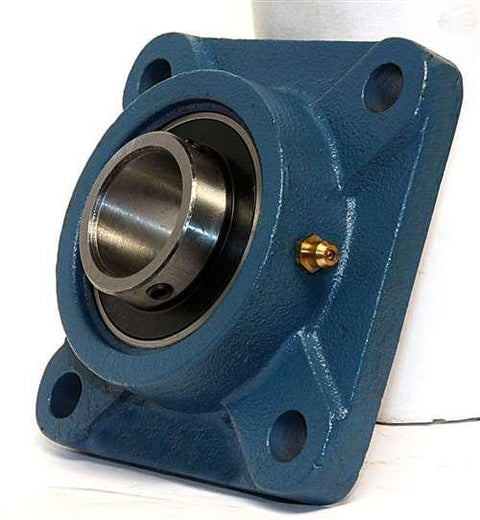

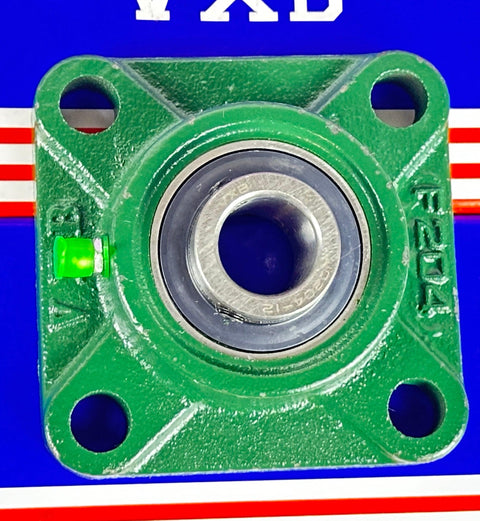

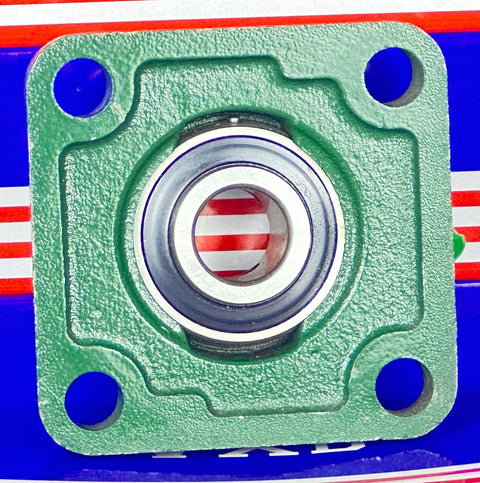

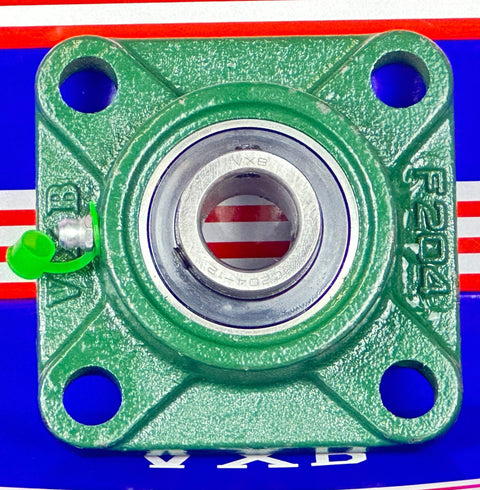

UCF204-12 Four Bolt Flange Unit
Set Screw Type
3/4" inch Inner Diameter


UCF204-12 Four Bolt Flange Unit 3/4" Inner Diameter:vxb:Ball Bearing
UCF204-12 Four Bolt Flange Unit 3/4" Inner Diameter:vxb:Ball Bearing
UCF204-12 Four Bolt Flange Unit 3/4" Inner Diameter:vxb:Ball Bearing

UCF204-12 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 3/4" inch

  • Item: UCF204-12 Ball Bearing
  • Type: Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 3/4" inch
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC204-12
  • Housing No: F204
  • Quantity: One Bearing


Dimensions (inches)
a e i g l s z Bi n
3-3/8" 2-33/64" 19/32" 15/32" 1" 15/32" 1-5/16" 1-7/32" 1/2"

Average Rating: 4 of 5 Total Reviews: 20 Write a review »

  0 of 0 people found the following review helpful:

Bearings February 5, 2016
Reviewer: Ron Burdette from Yukon, OK United States
The bearings were sent to the wrong address. I had to call to get new order sent to the correct address. otherwise, I would still be waiting for the bearings. RB

Was this review helpful to you?

  0 of 0 people found the following review helpful:

I would buy this product again. April 16, 2015
Reviewer: cabinetguy from Hampton, Ga
Items look good, can't wait to install them.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

VXB is great! March 7, 2015
Reviewer: ZPAEric from Pasadena, CA
I purchased 6 bearings to build a wide format, heavy duty ring roller for home use.  The bearings worked so well that I was able to roll a 1/4" thick 20" diameter wheel for the roller by just pushing the stock thru my new roller!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Great value February 24, 2014
Reviewer: Terry from RTP NC
We use the bearing for rotational loads. Device is robust and smooth.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

make it a fixed bearing November 11, 2013
Reviewer: Robert from Houston, TX
Its a self-aligning bearing and I was using it to make rotating pantry shelves.....doesnt work if you set a 4# bag of sugar down and it tilts.  But... I came up with an easy way to make it a fixed bearing. I used a 1-1 2" sched. 80 pipe  reamed the ID to 1-5 8  and cut it into rings .270" thick.  Place the ring between the housing and the mounting surface. It will align itself and the ring will prevent the bearing from floating in the housing.

Was this review helpful to you?
