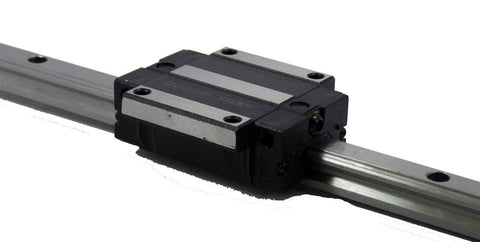

20mm 42.5" Rail Guideway System Square Slide Unit Linear Motion
20mm 42.5" Rail Guideway System Square Slide Unit Linear Motion



Our Price: $169.88
. Diameter Shaft: 20mm
. Rail length: 42.5" Inch
. Block Dynamic load rating: 17.75 KN
. Block Static load rating: 37.84 KN
. High repeatability and smooth running performance

Stock Status:In Stock
Product Code: KIT17820
Qty:

Description

We don't Offer International Shipping


20mm Linear Guideway System
42.5" Inch length Rail


"20mm
"20mm

Complete linear guideway system with one Square block installed, Diameter Shaft is 20mm and Rail long is 42.5" Inch.

  • Diameter Shaft: 20mm
  • Rail length: 42.5" Inch
  • Block Dynamic load rating: 17.75 KN
  • Block Static load rating: 37.84 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes


"20mm


Rail
Name
Rail Dimensions (mm) Block
Name
Block Dimensions (mm)
H H1 N d D E P W B B1 C L1 L K1 G Mx1 T H2 H3
HYR20-4000 30 4.6 12 6 9.5 20 60 HYH20CA 44 32 6 36 50.5 77.5 12.25 12 M5x6 8 6 7

20mm 42.5" Rail Guideway System Square Slide Unit Linear Motion


Kit17820
